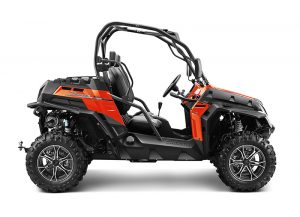

ZFORCE 550EX
The streamlined design, low center of gravity and superb trafficability makes it become the speed-dominator from desert to open field, which shows out a very sporty SSV vehicle in front of us.
* The model picture is only for your reference. The vehicle configuration may be subject to change due to local laws and regulations in different countries and regions.
ZFORCE 550EX SPECIFICATIONS
The specs is only for your reference. The specifications may be subject to change due to local laws and regulations in different countries and regions.
SPECIFICATIONS
| Engine Type | Single-cylinder,Liquid cooled,4-stroke,SOHC,4-Valve |
| Displacement | 495 cc |
| Bore × Stroke | 91x 76.2 mm |
| Maximum Power | 27.4 kW/7250 rpm |
| Maximum Torque | 40.8 N.m/6000 rpm |
| Compression Ratio | 10.3：1 |
| Fuel Supply | EFI |
| Ignition | ECU |
| Transmission | CVT |
| Length x Width x Height | 2870×1510×1830 mm |
| Wheelbase | 2040 mm |
| Seat Height | 395 mm |
| Minimum Ground Clearance | 305 mm |
| Minimum Turning Diameter | 9.5 m |
| Curb Weight | 580 kg |
| Payload Capacity | 295 kg |
| uel Capacity | 27 L |
| Colors | Lava Orange, Titanium Grey |
| Drive | Switchable 2WD/4WD |
| Brake | Four-wheel side brake (CBS) + rear wheel side parking |
| Suspension | Front/Rear: Double arm, independent suspension |
| Shock Absorber | Front/Rear：Coil spring + air damping |

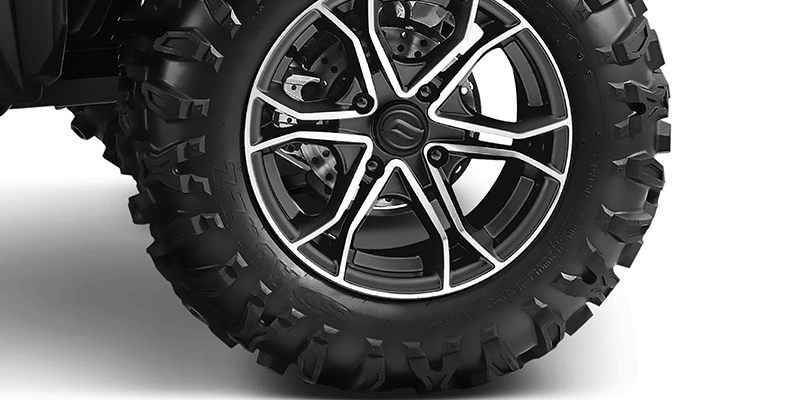

| Rim | Front：14×7.0, Rear：14×8.0 AT |
| Tire Pressure | Front：26×9.00-14 ；26×9.00 R14, Rear：26×11.00-14 ；26×11.00 R14 |
